Introduction
Traditional handmade wind instrument manufacturing is plagued by manual errors, inconsistent dimensions and unstable craftsmanship, often leading to inaccurate intonation, choppy airflow and poor playing comfort. Our high-precision CNC machining effectively breaks these traditional limitations.
Featuring precision control and standardized digital manufacturing, it delivers consistent dimensional accuracy of pipe cavities, sound holes and air passages, securing precise pitch stability and optimized ergonomic structure for smoother, more comfortable wind instrument performance.
1. How CNC Machining Shapes Wind Instrument Performance
Wind instrument sound quality and playability rely entirely on precise acoustic geometry and stable mechanical construction, two areas where traditional manual crafting struggles to deliver consistent results. CNC machining solves the inherent defects of manual processing and fundamentally upgrades the overall performance of wind instruments from acoustic transmission to mechanical operation.
1) Acoustic Geometry Precision
The bore cavity geometry is the core determinant of wind instrument pitch and tone. Traditional hand carving cannot avoid uneven inner wall, inconsistent pipe diameter and irregular curve transition, which cause turbulent airflow and unstable intonation. CNC high-precision milling enables accurate, repeatable cutting of complex internal bore structures. It maintains strict uniformity in inner tube curvature, wall thickness and airflow passages, effectively reduces air resistance and turbulence, and delivers stable pitch, pure tone and accurate intonation across the entire playing range.
2) Reliable Mechanical Structure Performance
A responsive keywork system determines players’ tactile experience and playing efficiency. Manual processing leads to large tolerance errors in key parts, resulting in excessive friction, unsmooth key bouncing and delayed response. With digital programming and dimensional control, CNC machining minimizes assembly gaps and mechanical friction for the entire keywork system. The tightly fitted structure provides sensitive key feedback, faster mechanical response and smoother operation, allowing musicians to achieve flexible fingering and stable performance during high-speed and long-time playing.
2. Specialized CNC Applications for Wind Instrument Components

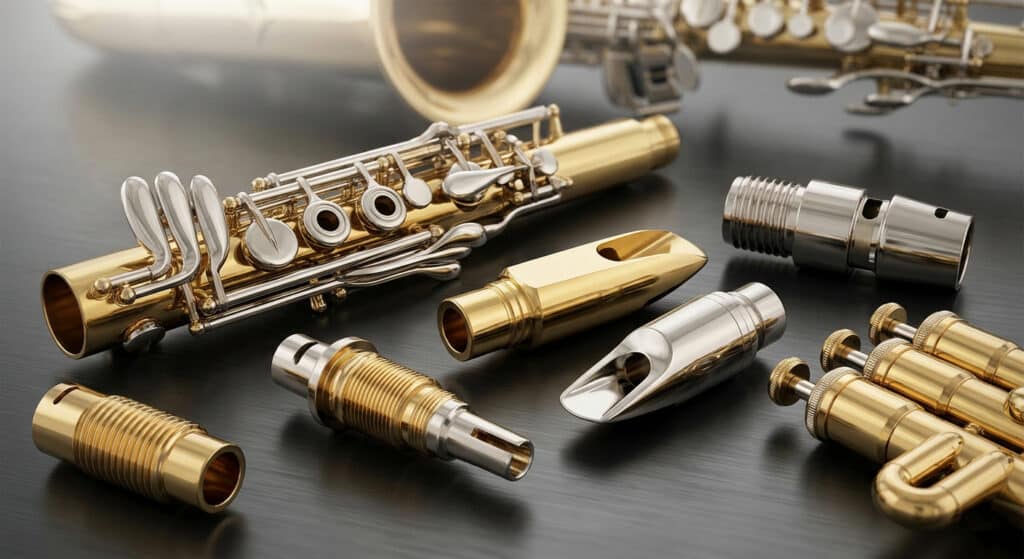

CNC machining delivers targeted, high-precision manufacturing solutions for different types of wind instrument components, meeting the unique structural and performance requirements of brass instruments, woodwind instruments, and custom mouthpieces with standardized and reliable tolerance control.
1) Brass Instrument
For daily and general brass instrument parts including valve caps, fixing screws and outer tubing, we adopt practical and stable tolerance control of ±0.05 – 0.1mm. This precision fully meets the standard assembly, daily use and maintenance requirements of brass instruments, ensuring tight component fitting, stable structural performance and excellent airtightness without redundant ultra-high precision costs.
2) Custom Mouthpiece Machining
We provide professional CNC custom machining for wind instrument mouthpieces compatible with multiple specialized materials, including metal and resin. Different material characteristics are matched with exclusive programming and cutting processes to ensure smooth surface finish, standard inner contour and perfect airflow geometry. Customized CNC mouthpiece processing delivers stable sound conduction, comfortable oral fit and personalized acoustic performance, catering to professional performance and personalized customization needs.
3. Why Traditional Manufacturers Are Switching to CNC
As professional standards evolve, manufacturers are moving away from traditional hand-crafting toward CNC-driven production to meet the demand for higher performance and reliability. The following table highlights the operational advantages of CNC machining over conventional manual methods in instrument manufacturing:
By utilizing CNC, manufacturers replace the inconsistencies inherent in hand-hammering or manual drilling—which can result in uneven wall thickness or poor seal integrity—with predictable, high-precision results. This transition is essential for brands that require absolute acoustic consistency across large production runs.
4. Material Engineering in Instrument Making
Material selection is fundamentally an acoustic decision, as the physical properties of an alloy directly dictate the instrument’s resonance and tonal character. Our CNC machining processes are calibrated to ensure these material characteristics are preserved and optimized during production.
Performance Materials
We specialize in machining high-grade alloys designed for durability and specific sonic profiles:
* Brass & Copper Alloys: These remain the standard for resonance, where maintaining uniform wall density is critical for predictable backpressure and a stable harmonic response.
* Nickel Silver: Preferred for its high strength and acoustic brightness, we utilize precision milling to handle its resistance to corrosion and wear.
* Aerospace-Grade Aluminum (6061-T6): Increasingly used for components like guitar necks, this material provides immunity to environmental fluctuations like humidity and temperature.
* Grade 5 Titanium: Employed for hardware and reinforcement rods, its superior strength-to-weight ratio enhances vibration transfer and sustain compared to traditional steel.
Surface Finish and Acoustic Resonance
The internal geometry, specifically the surface finish, is where the “magic” occurs. Rough surfaces within an instrument’s bore create air turbulence, which can dampen the sound and hinder playability.
* Minimizing Turbulence: We utilize advanced CNC finishing to achieve ultra-smooth surface roughness (Ra 0.4 or better). By minimizing micro-scratches and irregularities, we ensure airflow remains laminar and unobstructed.
* Optimizing Vibration: For external components, our multi-stage polishing processes, achieving mirror-like finishes (Ra < 0.1μm), eliminate micro-porosity in the metal, which preserves the alloy’s natural resonance without dampening the crisp response of the machined details.
* Functional Treatments: Specialized coatings like PVD (Physical Vapor Deposition) are used for high-contact areas, providing a biocompatible, corrosion-resistant layer that does not flake or tarnish, ensuring the instrument maintains its intended acoustic properties for decades.
For a deeper analysis of how we balance material science with machining parameters, we invite you to review our comprehensive technical guide: Precision CNC Machining for High-End Musical Instrument Components
5. Case Study: Overcoming Precision Manufacturing Challenges
In musical instrument production, complex geometries, such as thin-walled structures and deep-bore features, often exceed the capabilities of standard machining. This case study demonstrates how we leverage advanced process optimization and stress management to solve critical manufacturing challenges.
The Challenge: Controlling Dimensional Accuracy in Long-Axis Components
A high-end woodwind manufacturer struggled with post-machining distortion in a 200mm+ support component. Internal stress release during traditional milling caused the part to warp, compromising keywork airtightness and tactile response.
Our Solution: Process Re-engineering
Instead of adding redundant steps, we overhauled the manufacturing workflow:
* Thermal Stress Relieving: We implemented a multi-stage process with integrated thermal cycles to stabilize the material’s molecular structure before final precision passes.
* Custom Tension Fixturing: We designed specialized multi-point vacuum jigs to eliminate vibration and ensure uniform stress distribution during high-speed milling.
* Toolpath Planning: We utilized layered thinning strategies to maintain constant cutting temperatures, preventing thermal-induced material changes.
Results
* Enhanced Precision: Straightness error was reduced from 0.05mm to under 0.01mm, achieving “drop-in” assembly accuracy.
* Improved Performance: The extreme tolerance control improved keywork response speed by approximately 30%, significantly elevating the instrument’s playability.
6. FAQs for Musical Instrument Manufacturers
1) How does CNC machining ensure part interchangeability?
CNC machining utilizes computer-controlled paths to achieve accuracy, ensuring every component is identical to the design specification. This consistency eliminates the variation found in manual production, allowing components to be swapped or replaced across different instruments without compromising performance.
2) Is CNC machining cost-effective for prototyping and small-batch production?
Yes. By utilizing Design for Manufacturing (DFM) feedback, we optimize CAD files for production, reducing material waste and eliminating the need for expensive, permanent molds. This allows for rapid iteration of prototypes and cost-efficient production of small batches while maintaining the high quality required for professional instruments.
3) How do I get started with my project?
To begin, send your STEP or IGS files to our engineering team for a comprehensive DFM review. You can also request a sample kit to evaluate our precision finishes and material quality firsthand.
Partner with Xiamen Eternal Technology for Precision Instrument Components
The difference between a standard part and a world-class instrument is found in the details.
Whether you are refining the airflow of a custom mouthpiece, perfecting the seal of a water key, or revolutionizing the structural stability of a guitar neck, we possess the technical precision and finishing capabilities to bring your vision to life.
Ready to Prototype Your Next Innovation?
Don’t settle for “good enough” when it comes to sound. Partner with an engineering team that understands the nuances of the musical instrument industry.
* Get Started Today: Send your STEP/IGS files to our engineering team for a comprehensive DFM (Design for Manufacturing) review.
* Experience the Quality: Request a sample kit to feel our PVD coatings, mirror-polishing, and precision tolerances firsthand.
Click here to contact our engineering team and discuss your project requirements.
