1. The Unsung Hero of Hardware Components
Whether operating a premium architectural window system or a heavy-duty sliding gate, the user experience comes down to one critical component: the wheel. Smooth, silent, and reliable movement depends entirely on it. A poorly specified wheel guarantees track wear, jarring friction, and irritating noise.
Among industrial plastics, injection-molded Nylon (Polyamide/PA) and Thermoplastic Polyurethane (TPU) have emerged as the dominant materials for these applications due to their superior mechanical performance.

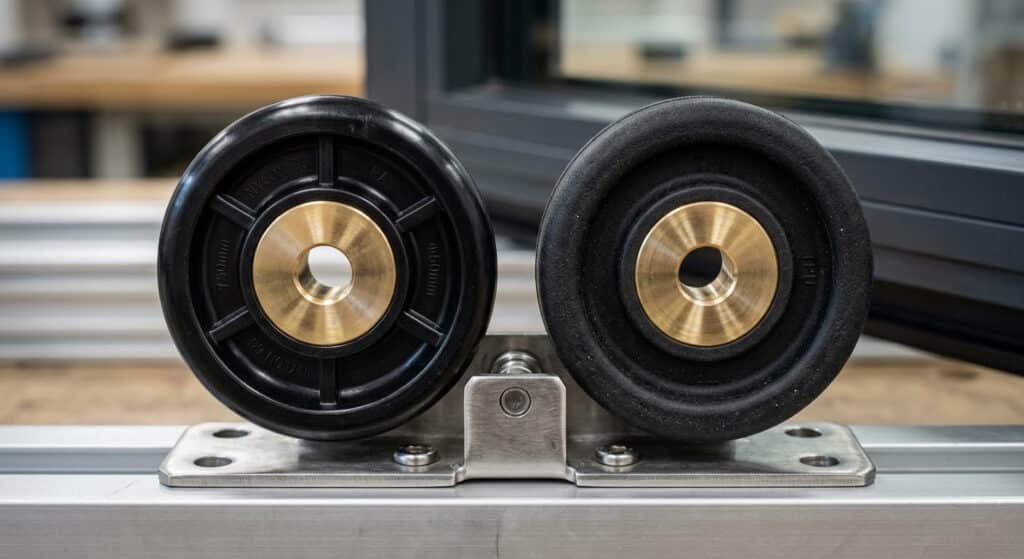

This article provides a direct, factual comparison of Nylon and TPU wheels for window, gate, and fence hardware. We will examine their specific use cases, cost-efficiency, and reveal exactly why top-tier hardware manufacturers rely on the precision metal-core overmolding process.
2. Nylon vs. TPU Physical Properties and Cost
When specifying rollers for architectural or industrial hardware, understanding the mechanical boundaries of Nylon and TPU is essential.
| Physical Properties Breakdown | ||
| Property | Injection-Molded Nylon (PA) | Thermoplastic Polyurethane (TPU) |
| Hardness | Very High (Rigid) | Medium to High (Elastic) |
| Noise Reduction | Good (Self-lubricating; quiet on smooth metal tracks) | Excellent (Vibration absorbing; ultimate silent glide) |
| Rolling Resistance | Extremely Low (Effortless sliding) | Moderate |
| Load Capacity | Excellent (Handles heavy static loads) | Good (Prone to flat-spotting under heavy static loads) |
| Wear Resistance | High (Excellent for dry friction) | Superior (Highly tear and abrasion resistant) |
Cost and Lifespan
Nylon (PA): Highly cost-effective with an excellent ROI. It offers an exceptionally long lifespan, particularly in dry environments and under heavy, continuous loads.
TPU: Higher raw material costs and stricter injection molding requirements. However, TPU adds significant value to the final product, delivering the premium, “silent-glide” luxury feel demanded by high-end architectural systems.
Pros & Cons Summary
Nylon Wheels
* Pros: Outstanding load capacity, ultra-low rolling resistance, highly durable, budget-friendly, self-lubricating (effectively reduces friction noise on metal tracks).
* Cons: Lower shock absorption than TPU, can generate noise if severely worn or used on rough tracks, may cause wear on softer floors over time.
TPU Wheels
* Pros: Whisper-quiet operation, excellent shock absorption, zero track or floor damage, high resistance to tearing.
* Cons: Higher manufacturing cost, lower static load threshold compared to Nylon.
3. How to Identify Nylon vs. TPU Wheels
When sourcing hardware or inspecting samples, it is crucial to verify the wheel material. Here are the most effective methods to distinguish Nylon from TPU, ranging from quick visual checks to definitive thermal tests.
3.1 Visual Inspection (Appearance):
Nylon: Typically opaque with a solid color (often raw white, beige, or black) and a glossy, hard surface finish.
TPU: Can be produced in high-visibility colors or semi-transparent finishes. It usually has a slightly matte or “rubbery” texture.
3.2 Tactile & Physical Testing (The Indentation Test):
Nylon: Rock-hard. If you press your fingernail or a metal key hard into the surface, it will leave absolutely no mark.
TPU: Elastic. Pressing a fingernail into it will cause a slight indentation that can recovers its original shape over time.
3.3 Acoustic Testing (The Drop Test):
Nylon: Dropping a solid Nylon wheel onto a concrete floor produces a sharp, loud, almost metallic “clack.”
TPU: Dropping a TPU wheel yields a dull, muffled “thud” due to its shock-absorbing properties.
3.4 Chemical Identification (The Burn Test):
Nylon (PA): Burns with a blue flame with a yellow tip. It melts, drips, foams, and produces a distinct smell similar to burning hair or wool.
TPU: Burns with a yellow flame, emits dark smoke, and produces a pungent, irritating chemical odor. The residue melts into a sticky, black liquid.
4. Three Major Applications: Nylon and TPU in Hardware
Understanding the specific mechanics of your hardware dictates the material choice. Here is how Nylon and TPU perform across different applications.
4.1 Window and Door Hardware
In window systems, Nylon and TPU are the primary choices for rollers, guide blocks, and bumpers.
Injection-Molded Nylon (PA6/PA66): The standard load-bearing wheel for sliding windows and heavy patio doors. To maximize performance, we utilize an overmolding process, injecting Nylon directly over stainless steel bearings or precision-machined brass and aluminum cores. Nylon’s high hardness and self-lubricating properties ensure smooth, effortless sliding. For the North American markets, where heavy double-glazed sliding doors are standard, Glass-Fiber Reinforced Nylon (PA+GF) is frequently used to further enhance load capacity.
TPU Wheels: The premium choice for luxury “Lift & Slide” doors and high-end system auxiliary rollers. TPU’s elasticity absorbs micro-vibrations from the track, achieving superior silent operation. Unlike rigid materials, TPU will not scratch or wear down expensive aluminum tracks over long-term use.
4.2 Gate Hardware
Outdoor driveway and cantilever gates demand high load capacity and weather resistance.
Nylon Components:
* Cantilever Gate Wheels: Thick-walled injected or solid machined Nylon wheels are essential for heavy sliding gates due to their immense compressive strength and durability.
* Guide Rollers: Installed at the top of the gate to prevent swaying. Nylon is highly wear-resistant and will not scratch the gate’s painted finish, a standard requirement for North American gate systems.
TPU Components:
* Gate Stops (Bumpers): TPU overmolded parts are used at the closing end of the track to absorb impact, completely eliminating harsh metal-to-metal clanking.
* Transmission Gears: In automated gate openers, TPU overmolding on drive gears significantly reduces mechanical running noise.
4.3 Fence Hardware
In fencing systems, these materials serve as structural, fixing, and functional accessories.
Nylon: Extensively used for fence brackets, decorative post caps, and sliding rail guides. When compounded with UV stabilizers, Nylon offers outstanding outdoor weather resistance, ensuring the parts do not become brittle after years of sun exposure.
TPU: Applied as anti-slip base pads for temporary fencing and as flexible sealing sleeves for frequently disassembled joints. Its tear resistance and flexibility provide a secure, tight grip.
5. Why Overmold Nylon/TPU onto Metal Cores?
Clients frequently ask: Why inject Nylon or TPU directly over stainless steel bearings or CNC-machined brass/aluminum cores? Is it just for added strength, and what is the actual difference? Here is the engineering reality behind the overmolding process.
Reason 1: Preventing “Creep” and Flat-Spotting
When a pure plastic wheel bears heavy static loads (like a heavy sliding door) over long periods, it undergoes micro-deformation known as “creep,” creating a flat spot on the wheel.
The internal metal core (brass, aluminum, or stainless steel) acts as the wheel’s “spine.” It absorbs the majority of the static pressure, ensuring the wheel maintains perfect roundness under heavy loads and slides without vibration.
This process combines the structural strength of the metal interior with the wear-resistant, shock-absorbing, and self-lubricating properties of the plastic exterior.
Reason 2: Precision Fit and Bearing Concentricity
Plastic shrinks during the injection molding cooling process, making it impossible to guarantee the micron-level internal tolerances required for smooth bearing operation.
A CNC-machined metal core solves this by providing perfect concentricity, eliminating any “wobble” when sliding.
Additionally, overmolding allows complex external geometries, such as U-grooves or V-grooves, to be molded directly onto the wheel, which is more cost-effective and performs better than machining solid metal wheels.
Reason 3: Track Protection (Why Not Pure Metal?)
If metal is so strong, why not use solid metal wheels?
Pure metal wheels will severely wear down expensive aluminum tracks or hardwood floors and generate harsh grinding noises.
Overmolding achieves the perfect balance of rigidity and flexibility: the metal core provides structural integrity, while the outer plastic layer ensures silent operation and zero track damage.
Reason 4: Advanced Corrosion Resistance
The injected plastic layer tightly encapsulates the internal metal components.
This effectively seals the metal off from moisture and salt spray, a critical requirement for window and door hardware installed in coastal environments, preventing rust and significantly extending the lifespan of the hardware.
6. Brass vs. Aluminum vs. Stainless Steel Cores
Choosing the right internal metal core is critical for application-specific performance and highlights the advanced manufacturing capability of combining precision CNC machining with plastic overmolding.
Brass Core: The Luxury Standard
* Exceptional corrosion resistance, making it ideal for coastal salt-spray environments.
* Natural self-lubricating properties ensure basic operation even if the internal bearing fails.
* Provides a substantial, heavy feel, making it the standard for high-end North American architectural hardware.
Aluminum Core: Lightweight & Cost-Effective
* Significantly lower weight, perfect for overmolding large brackets or bulky components.
* Highly cost-effective, ideal for standardized, high-volume industrial hardware applications.
Stainless Steel Core: Ultimate Heavy-Duty Durability
* Provides the absolute maximum structural strength and load-bearing capacity.
* Ultimate rust resistance (especially 304 or 316 grades) for harsh outdoor climates or chemical exposure.
* The go-to choice for heavy-duty gates and extreme industrial environments where failure is not an option.
| Metal Core Comparison Matrix | |||
| Feature | Brass Core | Aluminum Core | Stainless Steel Core |
| Corrosion Resistance | Excellent. Highly resistant to coastal salt spray and moisture. | Good. But prone to oxidation (white rust) if the plastic layer is breached. | Ultimate. Rust-proof and highly durable in extreme weather conditions. |
| Processing Performance (Machining & Overmolding) | Superior machinability. Ideal for high-precision micro-hardware. Bonds well during injection molding. | Easy to machine and lightweight. Excellent for large-area overmolding. | Harder to machine (higher tool wear). Requires precise thermal control during the overmolding process. |
| Self-Lubrication | Good. Natural lubricity prevents the core from seizing against the shaft if the bearing fails. | Poor. Prone to creating metal shavings under direct friction. | Poor. Susceptible to galling without lubrication; relies entirely on the bearing. |
| Market Positioning (Cost) | High-End / Luxury. Premium cost. The standard for luxury architectural systems. | Cost-Effective / Industrial. High ROI. Designed for lightweight, standard production. | Heavy-Duty / Premium. High cost. Reserved for maximum structural and environmental demands. |
7. Regional Market Insights and Custom Manufacturing
North American vs. European Market Demands
Hardware material requirements vary significantly depending on the target region:
* North America (Climate Resistance): Extreme cold weather, particularly in the Canadian market, demands specialized Nylon formulations. Standard plastics become fragile, so we adjust the Nylon compound to overcome low-temperature brittleness and ensure year-round impact resistance.
* Europe (Environmental Standards): Stricter environmental regulations drive a strong preference for TPU materials. TPU meets high eco-friendly and recyclability standards without sacrificing mechanical performance.
One-Stop Custom Manufacturing Capabilities
Managing separate suppliers for metal machining and plastic injection is inefficient and increases the risk of tolerance errors. We provide a streamlined, one-stop manufacturing solution, from the precision CNC machining of brass, aluminum, and stainless steel cores to the final injection overmolding process. This comprehensive approach solves complex assembly challenges and simplifies your supply chain.
Whether you need cold-resistant window rollers or premium gate hardware, we have the precise manufacturing capabilities to deliver. Send us your drawings for checking now.
